Basic USB interface

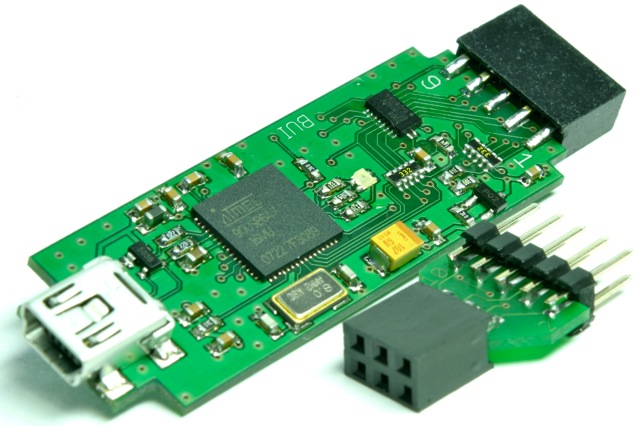

BUI prototype with 6pin ISP adapter

General

This module was developed in need of a affordable programmer for our busware gadgets CPM-BS, CSM, CUN.

It features a 8-bit bidirectional low voltage translator down to 1.0 Volt. Busses as SPI, I2C and UART are available on the 2x5 100mil pinheader. The module can optionally power the target with 5V. This will make the creation of user-specific-adapters (JTAG, RS485, 1wire etc.) easy.

Proper covers are also available ;)

Have a look at this modules Image Gallery

Specs

  • AT90USB646 processor @ 8MHz
  • GTL2003: 8-bit bidirectional low voltage translator down to 1.0V
  • ESD protection exceeds 2000V HBM per JESD22-A114
  • SPI, I2C and UART pins available on 2x5 100mil pinheader
  • option (FET) to power target (5V only)
  • multipurpose RGB LED
  • microswitch - HWB
  • dfu-bootloader for flashing via USB // optional 6FPC ISP pinheader

Documents

Firmware

  • LUFA project: AVRISP - AVRISPmkII clone

Availability/Price

This module will not being offered for sale

Created by: tostmann last modification: Tuesday 18 of May, 2010 [14:41:22 UTC] by tostmann
