CC1101 based UART

- former CSM version -

General

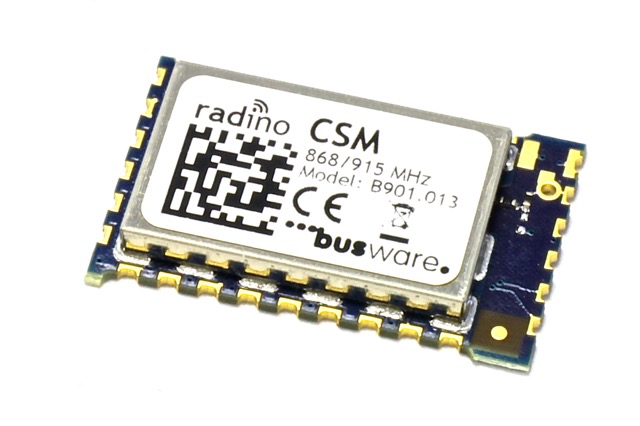

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data.

Have a look at this modules Image Gallery

Specs

• 1.8V-3.3V operation
• CC1101 transceiver tuned for 868MHz
• ATmega324p (or compatible)
• U.FL antenna connector
• optional HF shield
• two multipurpose LED
• dimensions: 28mm x 16.5mm x 2.8 mm
• pin compatible with 800/2400MHz IEEE802.15.4 radios

Documents

• ISM-Transceiver CC1101

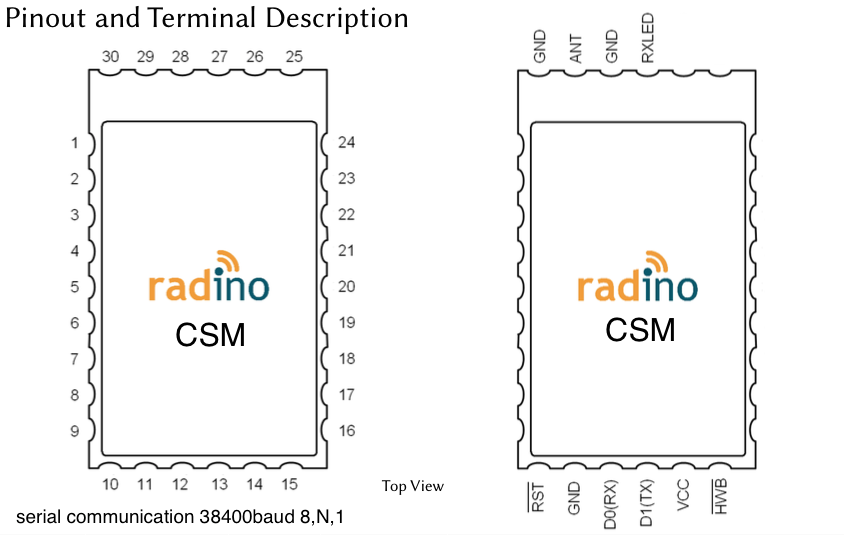

• pinout
• foot print

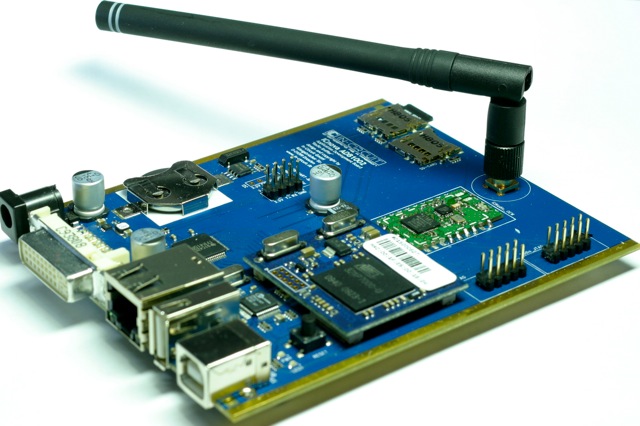

Application development board

• Linux core plugable either AVR32, AT91SAM9G45 (SAM9G45) or i.mx232
• 1x 10/100 Base-T-Ethernet-Port?
• 1x High-Speed-USB? 2.0 host port
• 1x High-Speed? USB-device port
• 1x DVI port
• 2x µSD slots with MMI and SPI interface
• 1x Li-Ion? buffered RTC
• 1x JTAG-Interface für Linux- and CSM module
• 5V power supply via power socket or USB
• Aluminium case / Power supply

Application

• kWh-Logger - capturing additional wireless sensors / driving wireless display

3nd party firmware projects

• culfw - FHEM support for FS20 / FHT / EM / HMS protocols

Availability/Price

This module is available for 24 Euro in our shop (including VAT)
