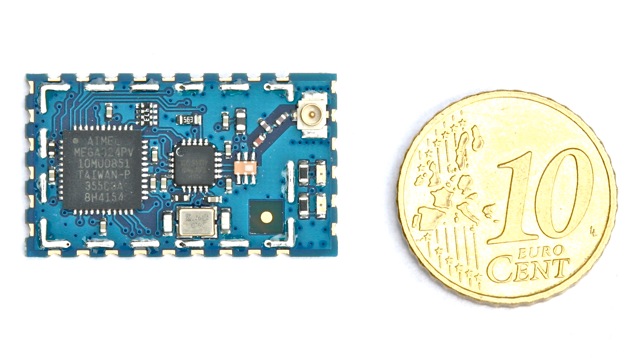

CC1101 based UART

This module has been superseded by CSM-RADINO

General

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data.

Have a look at this modules Image Gallery

Specs

• 3.3V operation
• CC1101 transceiver tuned for 868MHz
• ATmega1284p@8MHz - 128K Flash / 16K RAM / 4K EEPROM
• optional U.FL antenna connector
• optional HF shield
• two multipurpose LED
• dimensions: 28mm x 16.5mm x 2.8 mm
• pin compatible with 800/2400MHz IEEE802.15.4 radios
• shipped with avr109-bootloader@38400Baud (pull pin 6 (PD3) LOW during startup)

Documents

• Schematics & Placement
• ISM-Transceiver CC1101
• pinout
• foot print

Application

• ARDCSM - Arduino shield

3nd party firmware projects

• culfw - FHEM support for FS20 / FHT / EM / HMS / MAX! / Homematic protocols

Availability/Price

This module is no longer available in our shop
