CC1101 based UART

General

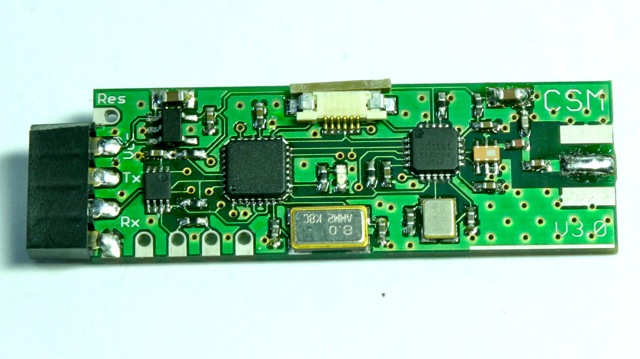

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data. Its I/O (VDD/RX/TX) can be connected to 3.3V or 5V systems. A optional RESET line will allow the host system to force bootloader access for firmware upgrades.

Have a look at this modules Image Gallery

Specs

• seamless 3.3 to 5.5 volt operation on all extern pins (VCC,TX,RX)
• CC1101 transceiver tuned for 868MHz
• ATmega88/168/328(P) @ 8MHz processor
• 3.3V core
• 6ISP (FPC) connector
• multipurpose LED

Documents

• ISM-Transceiver CC1101
• Schematic

Applications

• Pimp my LED ticker - make a LED ticker accessible wireless

3nd party firmware projects

• FHEM support for FS20 / FHT / EM / HMS protocols

Availability/Price

This module is no longer available in our shop
