CC1101 - USB - Remote

General

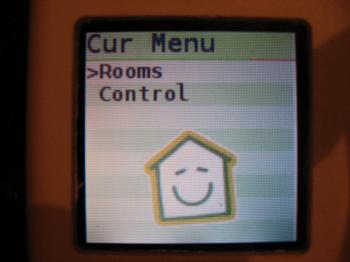

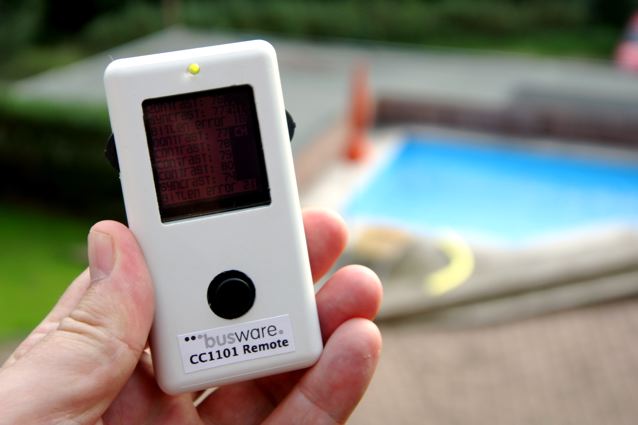

This remote looks a bit like a mobile phone, in fact there are many similarities. The front is occupied by a 132x132 full color display with background light. Below, for navigation, a mini joystick. Above the display a multi purpose green LED. To make navigation more flexible you have a three-way-jogdial at each side.
A mini USB connector is located at the bottom. This can be used to charge the internal Li-Ion? battery and (obviously) exchange data with the remote.

Have a look at this modules Image Gallery ...

Specs

• AT90USB646/1286 processor 8MHz @ 3.3V
• CC1101 - ISM transceiver tuned for 868MHz
• 1/4 wave micro antenna
• Li-Ion/Polymer battery incl. charger via USB
• 2MB data flash
• 131x131 pixel RGB display with white background light
• buffered Real Time Clock
• 950nm IR led - 38kHz IR receiver
• 5-way mini joystick
• green multi purpose led
• MiniUSB connector
• JTAG and ISP connector

Documents

• ISM-Transceiver CC1100 or CC1101

Firmware projects

• FHEM support for FS20 / FHT / EM / HMS protocols

Links

• CUL fans - group discussion
• Betty Remote
