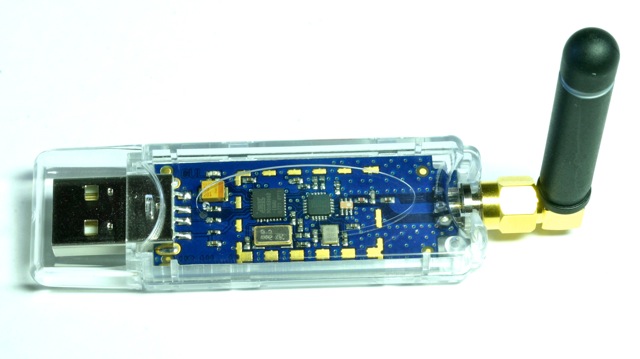

CC1101 - USB - Lite module - V2

General

This "dongle" will enable you to interface with ISM/SRD bands air data of any kind. The module contains a modern 8-bit Atmel for raw data pre-processing before passing it to the USB 2.0 interface or the powerful Texas Instruments transceiver.

To create your own applications you may use the avr-gcc.

The device ships with a DFU-bootloader. Use dfu-programmer to program it. Alternately you may solder yourself a FPC-socket to use serial ISP programming.

By default an lambda/4 wire antenna is connected. Nevertheless: the PCB contains a SMA-antenna-pinheader, where you may solder a "real" antenna if required.

The 868MHZ-HF-design follows TIs design note DN025.

Have a look at this modules Image Gallery and see a YouTube-video how a CUL-prototype is hand soldered.

More questions you might find answered in the modules FAQ

Specs

• AT90USB162 processor 8MHz @ 3.3V
• CC1101 ISM transceiver tuned for 868MHz or 433MHz
• pinheader for SMA / SMA-RP socket
• green multi purpose led
• multi purpose micro switch
• USB type A male connector
• optional ISP connector (FPC6)
• optional HF-shield

Documents

• CULV2X-Schematic (as PDF)
• CULV2 433Mhz-Schematic (as PDF)
• The CUL-FAQ
• ISM-Transceiver CC1101
• Atmel controller AT90USB162

Recommended tools/software

• avr-gcc
• dfu-programmer
• LUFA (MyUSB) - open source USB stack (for ie. serial communication)

Demonstration firmware

• USBSerialLink.hex (11.62 Kb) - Simple serial-USB datalink (two or more CUL required) using CC1101 capabilities
• ELFE.hex (32.16 Kb) - an ELV devices airtraffic (868MHz AM) decoder (FS20,FHT,EM,KS,HMS-protocols)

The module does not require any special driver to run under Linux or MacOS. For Windows use this CUL.inf (1.38 Kb)
How to load this/new firmware | Source code

3nd party firmware projects

• FHEM support for FS20 / FHT / EM / HMS protocols
• Ethernet support for CUL - "WLAN for cheap"

Links

• CUL fans - group discussion

Availability/Price

This module is not longer available.
