Homematic-USB-Light - HmUL

General

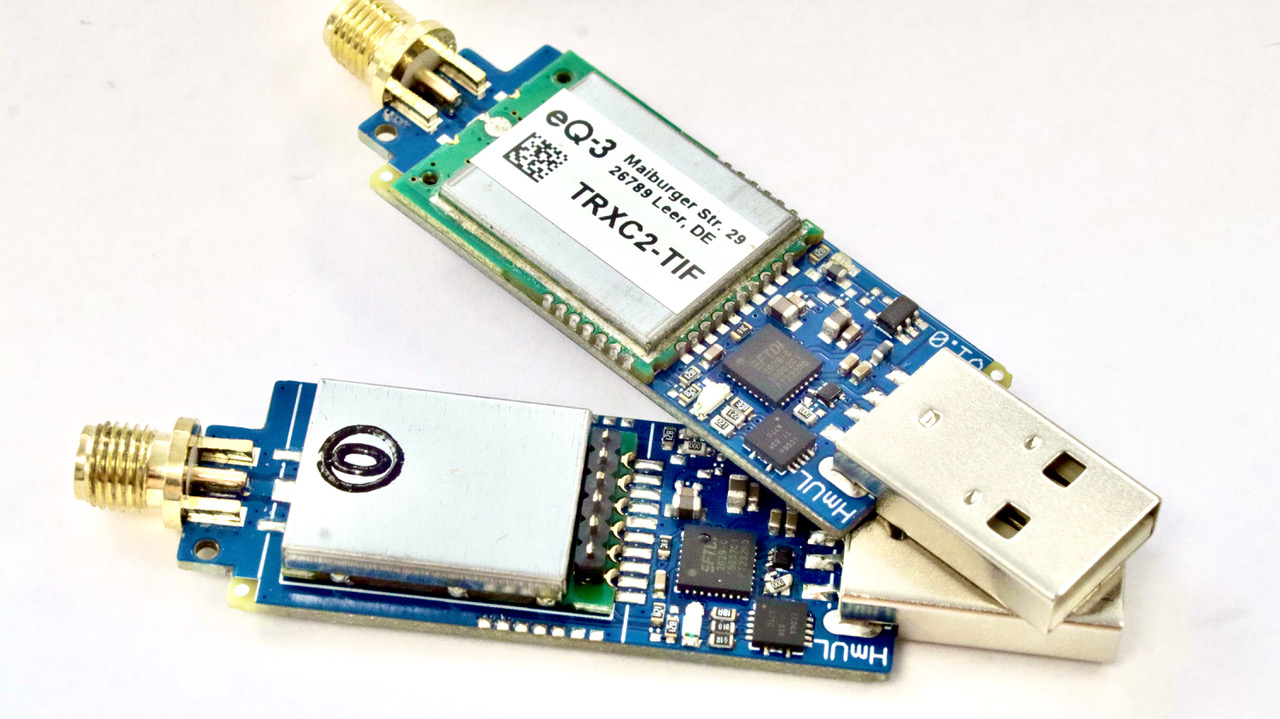

This USB board carries either RPI-RF-MOD or HM-MOD-UART and interfaces them via a FT232R converter.


Have a look at this modules Image Gallery

Specs

• RPI-RF-MOD or HM-MOD-UART
• FTDI FT232R USB -> UART converter
• Reset logic
• 3 color LED
• RP-SMA socket

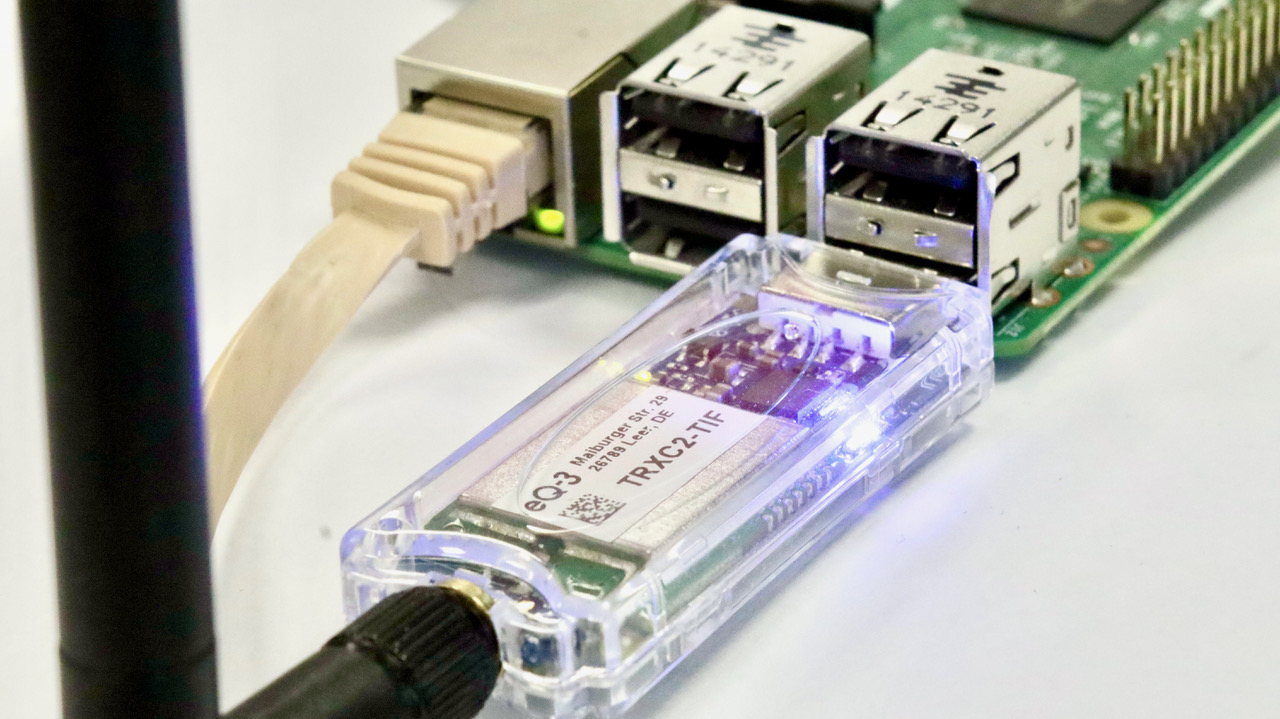

• plastic enclosure

Documents

• HmUL12.pdf - schematics

Implementations/References

• https://busmatic.de - BusMatic?

HB-RF-USB clone

To make this hardware act as HB-RF-USB device supported by RaspberryMatic (or similar) you'll need to set FT232R eeprom values accordingly - as given here.

• Windows instructions: FT_Prog:
• Linux: ft232r_prog (ft232r_prog --dump --new-pid 0x6f70 --old-pid 0x6bf0 --manufacturer "Alexander Reinert" --product "HB-RF-USB")

Availability

Samples available in our shop
