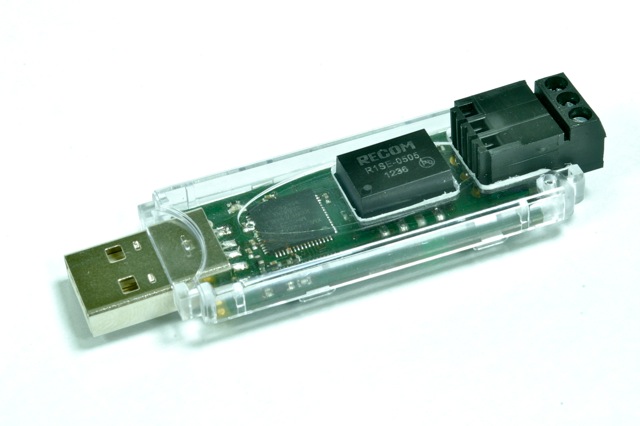

RUX - isolated RS485 USB stick with Xmega-MPU

General

This small USB stick is aimed for connecting to any kind of RS485 bus with on-board processor, isolated!
- see image gallery

Specs

• freely programmable ATXMEGA256A3U MPU w/ dfu-bootloader (dfu-programmer 0.6.2+ required)
• isolated high speed RS485 bus interface
• 4000-VPEAK Isolation, 560-Vpeak VIORM – UL 1577, IEC 60747-5-2 (VDE 0884, Rev. 2),
• IEC 61010-1, IEC 60950-1 and CSA Approved
• Half-Duplex? up to 20 Mbps
• 1/8 Unit Load – Up to 256 Nodes on a Bus

Firmware

• transparent CDC_ACM USART - 2.4 up to 460.8 kBaud

Availability

This stick is only available in MOQ 50 on email request.
