TPUART-USB-Light-Pico - TULP

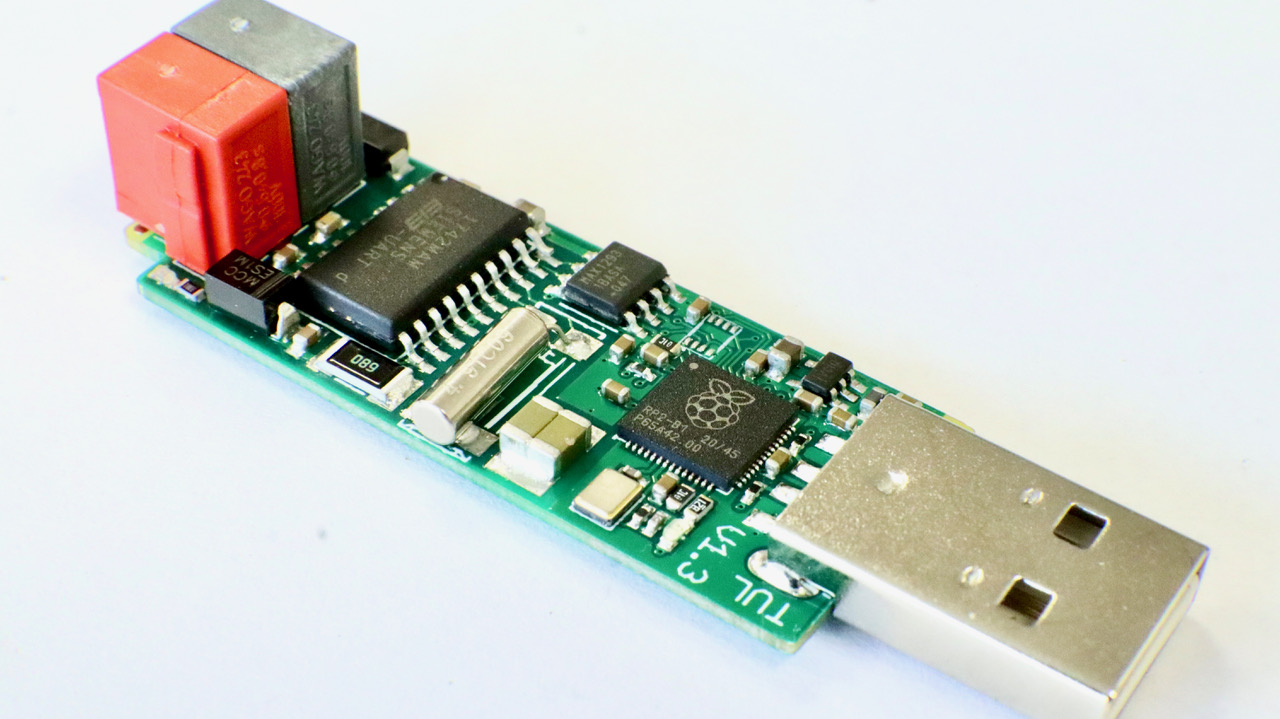

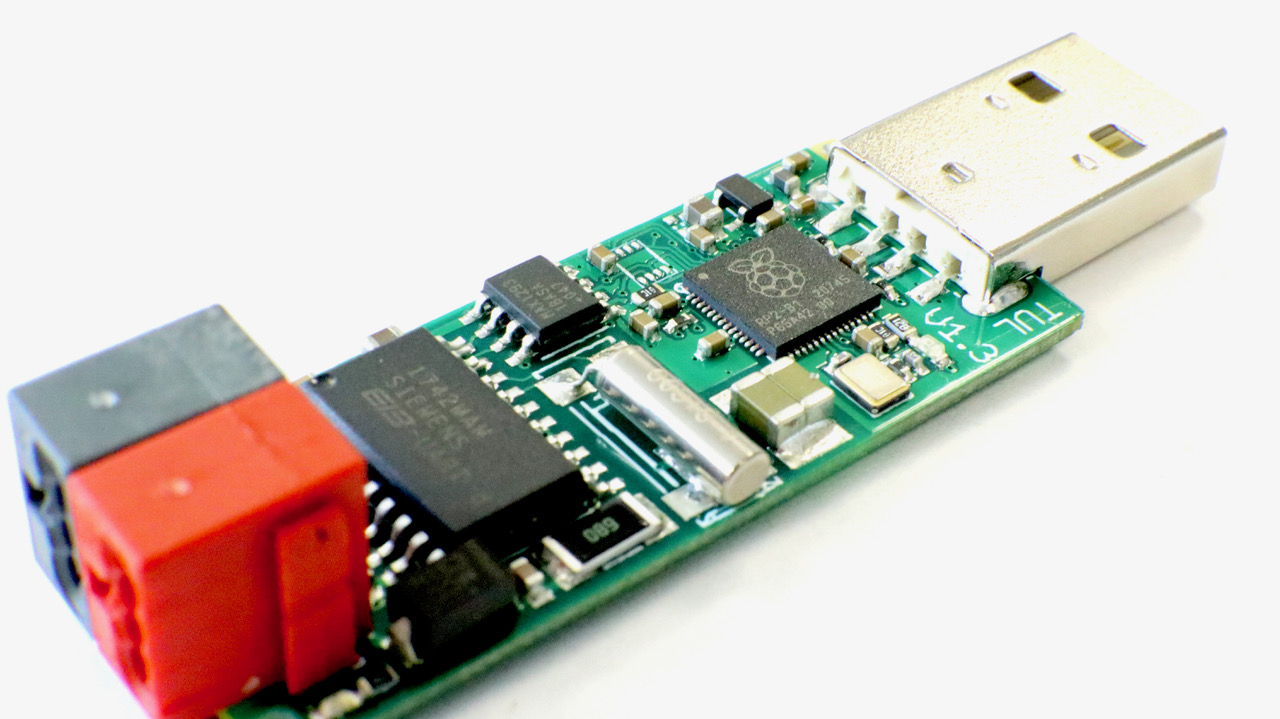

TULP prototype

General

This module interfaces a KNX bus via USB.

TULP

Have a look at this modules Image Gallery

Specs

isolated KNX bus
Raspberry Pico RP2040 processor
2MB Flash
Status LEDs
plastic enclosure

Documents

TULP10.pdf - schematics

Firmware

serial transparent firmware

Plug the stick with bootloader button pressed at its back and watch out for the block device enumerating:
mount /dev/sda1 /mnt; cp TULP.ino.rpipico.uf2 /mnt/; umount /mnt

Implementations/References

knxd - compatible like TUL with transparent serial firmware from above

Availability

This unit is available in our shop

Created by: tostmann last modification: Monday 21 of February, 2022 [09:05:42 UTC] by tostmann
