LoRa-USB-WLAN - LUW

General

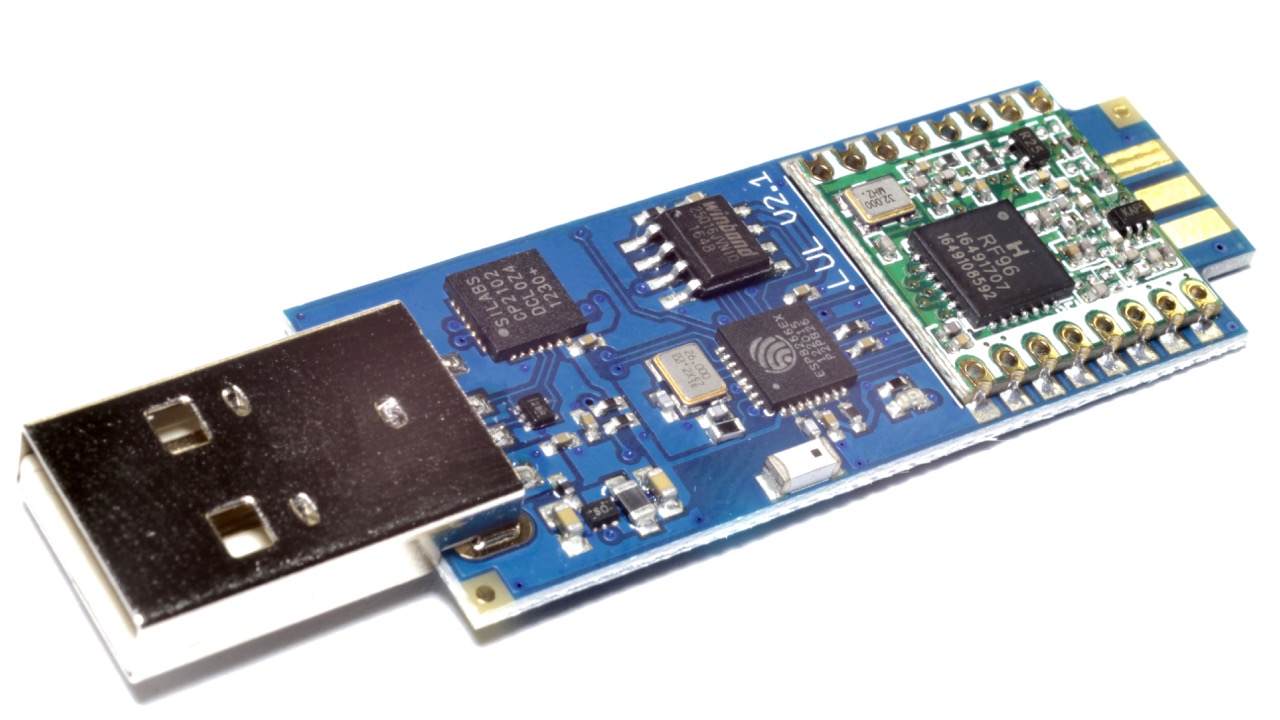

The small device glues a RFM9X-LoRa-Module and ESP8266 WiFi-SOC? into a single channel paket forwarder to TTN or similar.
The ESP is accessible through onboard USB-Serial-bridge.


Have a look at this modules Image Gallery

Specs

• RFM95 module or similar
• ESP8266 SOC
• 2.4GHz WIFI 802.11b/g/n
• 2MB Flash
• serial SOC access via CP2102 USB bridge
• PRG-button to enter flash mode
• Status LED on GPIO2

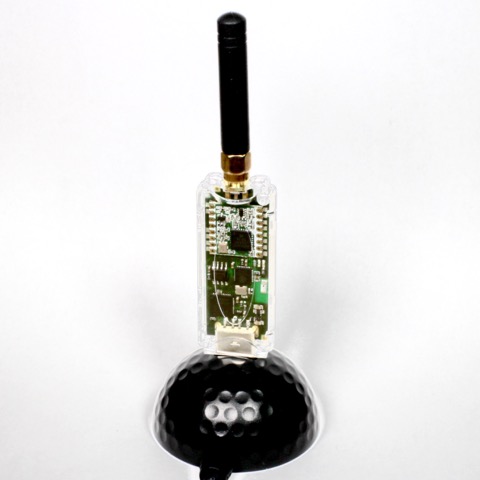

• plastic enclosure

Documents

• LUW21.pdf - schematics

Implementations/References

• https://github.com/esp8266/esp8266-wiki/wiki - Arduino for LUW
• https://github.com/JaapBraam/LoRaWanGateway - Single channel gateway to TTN using NodeMCU/Lua

Availability

This unit is available in our shop
